AR (Anti-reflective) Glass

Anti reflective glass, also known as AR glass, It have high transmittance and low reflectivity. They have two type: single side anti reflective glass and double sides anti reflective glass. If you select single side AR coating glass, light transmittance>93-95%, light reflectivity<5. If you select double side AR coating glass, light transmittance>95-98%, light reflectivity <1.5%. Another usage: anti reflective glass can prevent UV. AR glass is wildly used as led lighting cover glass/touch screen/LCD/TV/ monitor protection glass etc.
Message

$0.00

Have chosen: There are no options selected

Start To Order

Add To Cart Successfully!

AR (Anti-reflective) Glass
AR (Anti-reflective) Glass
AR (Anti-reflective) Glass
AR (Anti-reflective) Glass

AR (Anti-reflective) Glass

Anti reflective glass, also known as AR glass, It have high transmittance and low reflectivity. They have two type: single side anti reflective glass and double sides anti reflective glass. If you select single side AR coating glass, light transmittance>93-95%, light reflectivity<5. If you select double side AR coating glass, light transmittance>95-98%, light reflectivity <1.5%. Another usage: anti reflective glass can prevent UV. AR glass is wildly used as led lighting cover glass/touch screen/LCD/TV/ monitor protection glass etc.


100-Pieces

$0.00

  • Product CodeAn78349313
Sample - $0.00 / Piece. 1 Piece (Min. Order) :Buy Samples

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Anti Reflective Glass

Transmittance: ≥97%
Surface hardness: ≥7H
Thickness:0.55 mm, 0.7 mm, 1.1 mm, 1.3 mm, 1.6 mm, 1.8 mm, 2.0 mm, up to 5.0 mm
Size: customized size, up to 2440 x 3660 mm
Number of Packing Pieces: 25/50 Pieces

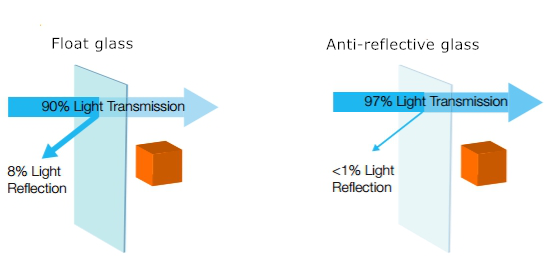

Anti reflective glass have some advantages:
  • Have higher light transmittance than ordinary glass. The highest light transmittance is over 98%.
  • Have lower height reflectivity than ordinary glass. The lowest light reflectivity is 1.5%.
  • It can prevent a large propotion of UV.

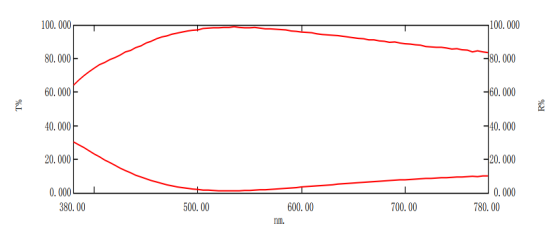

Special Properties
  • Very low surface reflections (≤1.5%)
  • High VL transmittance (≥98.0%)
  • No ghost images, phantom light and double laser beams
  • Refractive index matches glass-to-air transition
  • Dielectric multi-layer coating construction
  • Low light absorption
  • High abrasion resistance（≥7H）and coating adhesion

Applications
  • Anti-reflection coating for optical windows and lenses
  • Architectural applications
  • Retail storefronts
  • Picture frame
  • Museum glass displays
  • Sensor cover glasses
  • Laser windows
  • Anti-reflection coatings for optical measuring instruments
  • Automotive cockpit glasses
  • Camera protection windows
  • AR-coating for single lenses and lens assemblies
